Cost-Effective Conventional Fire Alarm Panels for Commercial Spaces

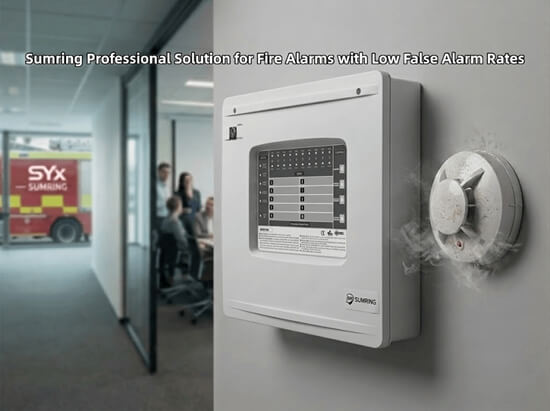

When sourcing reliable fire safety equipment for small to medium-sized commercial buildings, balancing performance with budget is critical. Unlike complex addressable systems designed for high-rises, a conventional fire alarm control panel (FACP) offers a highly cost-effective solution. By significantly reducing wiring and construction costs, this zone-based system is the ideal choice for coffee shops, retail boutiques, compact offices, and educational facilities.

As a certified source factory, Sumring manufactures customizable 4, 8, and 16-zone fire panels backed by full CE and RoHS credentials. We provide flexible OEM and ODM services to meet your specific project needs. Visit our official website to obtain free zoning layout drawings and direct factory quotations.

How a Zone Fire Panel Works: A 5-Stage Trigger Flow

Every custom FACP from Sumring operates on intuitive, independent zone circuit logic. Each protected area runs an exclusive two-wire loop connected back to the main control unit. The complete emergency response workflow includes five clear steps:

1. Hazard Signal Triggering
Smoke sensors, heat detectors, and manual call points are deployed across different zones to capture early fire risks. For example, heat detectors in kitchen prep areas effectively monitor grease fire hazards, while lobby smoke sensors detect floating combustion particles at the earliest stage.

2. Circuit Signal Transmission
All detection hardware within a single zone shares one wiring pair to feed signals to the panel. This simplified architecture drastically cuts labor and material expenses—a standout advantage for budget-limited commercial projects.

3. Zone Area Identification
Dedicated LED indicators on the FACP illuminate to display the active alarm zone. While zone-based systems mark a general alert area rather than pinpointing individual detectors, they allow on-site staff to quickly narrow down emergency inspection ranges.

4. Audible and Visual Evacuation Notification
Upon receiving a hazard signal, the system instantly activates connected sounders and strobe lights. This combined alert ensures all occupants, including hearing-impaired visitors, receive timely evacuation reminders.

5. Programmable Auxiliary Linkage
Sumring’s customized fire control panels support relay programming for automatic safety operations. The system can shut down HVAC ventilation to prevent smoke circulation or unlock emergency exit magnetic locks, fully complying with global commercial fire protection codes.

 Core Strengths of Sumring Source Factory FACPs

• Flexible Customization: We accept full custom orders. Clients can adjust panel shell printing, zone quantities, backup battery capacity, relay output modes, and outer packaging to match local certification standards.
• Low Installation Costs: Compared to addressable systems, our conventional panels require fewer cables and no complicated pre-programming, allowing contractors to complete rapid site deployments.
• Continuous Circuit Monitoring: Every zone circuit runs under constant supervision. Short circuits, open wiring, or power outages trigger clear trouble warnings, enabling facility managers to resolve faults before real emergencies occur. Built-in standby batteries guarantee uninterrupted operation during mains failures.
• Wide Peripheral Compatibility: Our panels seamlessly match standard two-wire fire accessories, including smoke sensors, heat detectors, and alarm strobe sounders, maximizing layout flexibility.

 Ideal Application Scenarios

Sumring’s zone-style fire panels are perfectly suited for low-rise commercial spaces:

• Cafes & Catering Stores: Independent zoning covers lobbies, restrooms, and kitchens to build multi-layer fire defense.
• Small Offices: Multi-zone coverage for meeting rooms and storage spaces ensures smooth municipal fire safety inspections.
• Retail Boutiques: Compact sales floors and back stock rooms can be split into independent monitoring zones with minimal wiring investment.
• Schools & Kindergartens: Budget-friendly customized panels meet educational building safety codes without unnecessary costs.

Note: Large multi-floor malls, high-rise hotels, and heavy industrial workshops require addressable panels to pinpoint exact detector locations and are not recommended for zone-type FACPs.

Standard Technical Specifications

To help engineers and contractors plan efficiently, here are the baseline parameters for our conventional panels:

• Available Zones: 4, 8, 12, and 16 zones
• Operating Voltage: AC 220V / 110V (50Hz/60Hz)
• Standby Battery: 12V/7Ah (Supports up to 24 hours of backup power)
• End-of-Line Resistor: 4.7kΩ / 5W
• Operating Temperature: -10°C to +50°C
• Certifications: CE, RoHS, ISO9001
•

Frequently Asked Questions (FAQ)

Q1: Can I mix different types of detectors on the same zone?
Yes, but it is highly recommended to keep smoke and heat detectors on separate zones. This prevents false alarms caused by heat detectors reacting to normal kitchen temperatures or steam.

Q2: What is the maximum wiring distance for a single zone?
While it depends on the wire gauge, standard two-wire loops can typically run up to 1,000 meters using 1.5mm² copper wire. Please consult our technical team for specific voltage drop calculations.

Q3: Does Sumring provide installation support?
Absolutely. We provide free wiring diagrams, zone layout plans, and 24/7 online video guidance for your engineering team to ensure a smooth installation process.

Get Your Custom Fire Safety Solution Today

Whether you are a fire equipment wholesaler, an engineering contractor, or a business owner, Sumring is your one-stop fire safety solution provider. We supply free technical specification sheets, customized zone layout plans, certified test reports, and factory-direct bulk pricing without middleman markups.

Wondering how to tailor a zone fire panel that fits your local codes and budget? Visit SUMRING to communicate with our professional engineers and receive your exclusive customized quotation within 24 hours.
