Wired heat detector

Wired heat detector

Fixed temperature heat detector alarm kitchen heat detector
hard wired heat detector
hard wired heat detector
fixed temperature heat detector
fixed temperature heat detector

Fixed temperature heat detector alarm kitchen heat detector

Product Specification:
  • Place Of Origin : Shenzhen, Guangdong
  • Model : SR-504
  • Material : ABS
  • Operating voltage : DC 9V-35V
  • The warranty time : 2 yesrs
See Price
  1. Product Details

Fixed temperature heat detector alarm kitchen heat detector



 Main features:

1.SR-504 is 2-Wire network heat detector

2.Combination rate-of-rise and fixed temperature alarm

3.MCU processing, eliminate false alarm

4.Low standby current

5.Anti-RFI &Anti-EMI

6.9-35VDC wide operating voltage range (aslo called hard wired heat detector)

7.LED flashing visible in 360 degrees direction

8.Power supply non-polar input

9.Remote LED indicator output (2 wire)

10.Rustproof, mothproof, anti-light interference design

11.Execute criterion: GB4716, EN54-5



Technical specification:

Model number SR-504
Operating voltage DC 9V-35V
Static current ≤50uA
Alarm current 35mA(12V); 83 mA (24V)
Alarm output Remote LED indicator
Alarm temperature Rate-of-rise alarm: temperature rising rate>8ºC
Installation Ceiling mounted
Working environment -10ºC~+50ºC, Humidity ≤95%RH
Dimension 100*48mm

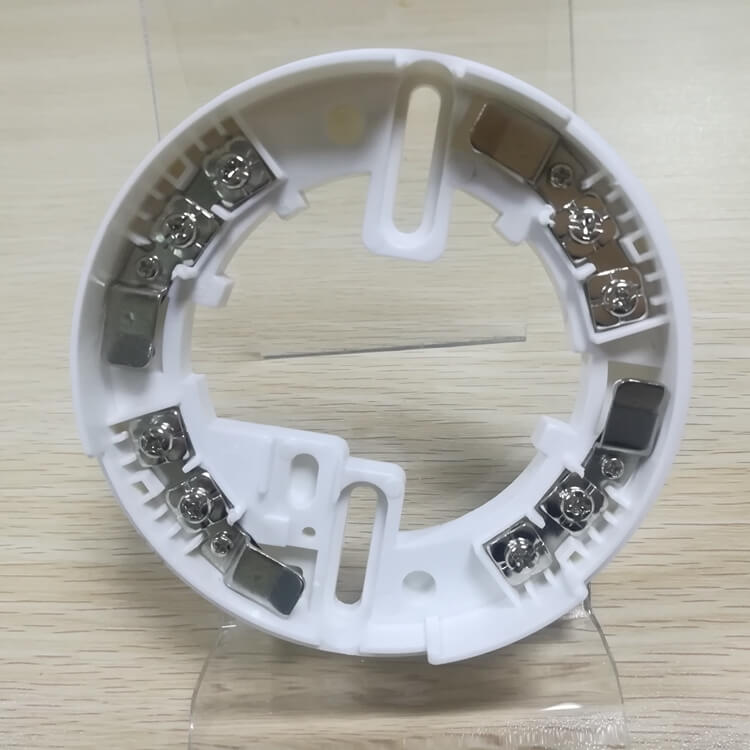

display for fixed temperature heat detector and hard wired heat detector side of fixed temperature heat detector and hard wired heat detectorinside of fixed temperature heat detector and hard wired heat detector conventional fixed temperature heat detector and hard wired heat detectorwired fixed temperature heat detector and hard wired heat detector plastic shell of wired fixed temperature heat detector and hard wired heat detector

FAQ

Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in fire alarm products.

Q2:What is the moq?
A2:As usual,there is ready stock for our regular & hot selling models.
So any order quantity is welcome.

Q3:Can I customize LOGO and customized functions?
A3:Yes you can. Packaging, products, instructions can be printed logo. and functions we have professional R&D team to support best service.

Q4:How about the quality of your products?
A4:We specialize in this field for 15 years, Our raw materials are purchased from qualified suppliers.Supporting visits to factory

Q5:How long is the warranty time of the products?
A5:The warranty period is 2 years from the factory,if there are individual quality problems,
we will replenish the customer in the next batch of orders.
